kmyled.geloLED Street Light
Located：LED Street Light
E40 LED Street Light
Model:KW-LA100W Brand:
Product introduction
Anti-fire and high temperature resistance PBTE40/E39/E27/E27 base.
Directly replace traditional light, easy to do retrofit.
Perfect craftsmanship and detail concentrated.
Patent No.:201120223709.XContact manufacturer
Technical Parameter Features Replacement Package Applications
|
Model
|
POWER(W)
|
LM
|
Size（mm）
|
Net weight
|
|
|
KW-LA30W
|
30
|
3000-3600
|
265*105
|
1.3KG
|
|
|
KW-LA40W
|
40
|
3600-4320
|
265*105
|
1.3KG
|
|
|
KW-LA60W
|
60
|
5400-6480
|
275*150
|
1.5KG
|
|
|
KW-LA80W
|
80
|
7200-8640
|
288*150
|
1.6KG
|
|
|
KW-LA100W
|
100
|
9000-10800
|
288*150
|
1.6KG
|
|
|
Input Voltage
|
AC100V～240V
|
||||
|
Frequency Range
|
50Hz～60Hz
|
||||
|
Total Harmonic Distortion
|
≤ 9 %
|
||||
|
Power Factor
|
＞0.98
|
||||
|
Power Efficiency
|
＞87 %
|
||||
|
Working Voltage
|
DC30～36V
|
||||
|
Color Rendering Index
|
Ra＞80
|
||||
|
IP Grade
|
IP60
|
||||
|
Material
|
Aluminum Alloy
|
||||
|
Led Luminous Efficiency
|
100-120Lm /W
|
||||
|
lamps Efficiency
|
＞91 %
|
||||
|
Illuminance Uniformity
|
＞0.6
|
||||
|
Color Tenperature
|
2700-7000K
|
||||
|
Light emitting angle
|
120°
|
||||
|
Junction Temperature
|
≤80℃
|
||||
|
Working Temperature
|
-40℃ ～ +55℃
|
||||
|
Storage Temperature
|
-25℃ ～ +65℃
|
||||
|
Working Lifespan
|
50000H
|
||||
●Delicate and beautiful,seamless injection molding process.
●Convection,the industry standard.
● Energy saving,low carbon environmental protection,no mercury pollution
●Intelligent circuit,security and stability.
●360 Degree Rotating Lamp Holder,easy installation.
● E26/E27/E39/E40 base available.
● Intelligent temperature control driver used.
●Perfect fan ventilation:long life ,double ball,high speed,no noise. Instantaneous dispel the heat in the LED lamps,the perfect solutions to the heat ventilation of led.
Incandescent lamp,HPS, energy-saving lamps,electrodeless lamps, mercury lamp, sodium lamp replacement.
Package:
KW-LA30W/40W:10PCS/CTN G.W.:13KG/CTN MEAS: 60*32*27CM
KW-LA60W/80W/100W/120W: 10pcs/CTN G.W.:12KGS MEAS: 55*39*32CM

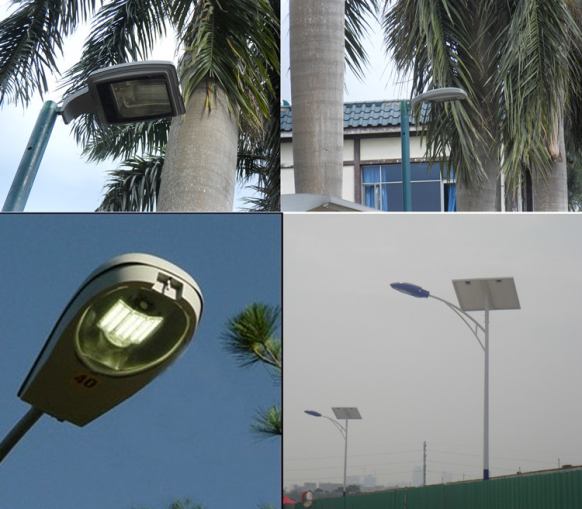

◆Street , express road, expressway, major road, sideway, road in living area and siedwalk, square,
sport place, park, station, airport, lawn, store, playground, tennis court, golf course, basketball court,
footable field, etc.
◆Applied to solar and wind-powered Lighting.
◆Replace the Incandescent lamp,HPS, energy-saving lamps,electrodeless lamps, mercury lamp, sodium lamp .
