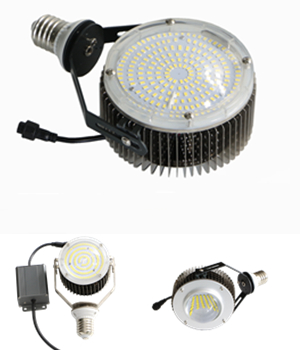

50W-180W LED Retrofit Kits
Model:KW-SS150W Brand:
Product introduction
LED Retrofit KitsPower:50W/60W/80W/100W/150W/180W
Dimmable: customizable
CRI:>80ra
Life: 50,000 HoursContact manufacturer
Technical Parameter Features Replacement Package Applications
 |
This led retrofit light is design for proving extra light around the outside of a commercial or industrial setting. Available as replacements for both round and rectangular fixtures.
|
|
Model
|
Power(W)
|
LM
|
Size (mm)
|
Net weight
|
Lamp holder
|
|
|
KW-SS50W
|
50
|
5000-5500
|
125*220-250
|
0.55KG
|
E26 E27 E39 E40
|
|
|
KW-SS60W
|
60
|
6000-6600
|
125*220-250
|
0.55KG
|
||
|
KW-SS80W
|
80
|
8000-8800
|
125*220-250
|
0.55KG
|
||
|
KW-SS100W
|
100W
|
10000-11000
|
165*230-270
|
0.92KG
|
||
|
KW-SS120W
|
120W
|
12000-13200
|
165*230-270
|
0.92KG
|
||
|
KW-SS150W
|
150W
|
15000-16500
|
165*230-270
|
0.92KG
|
||
|
KW-SS180W
|
180W
|
18000-19800
|
165*230-270
|
0.92KG
|
||
|
|
||||||
|
Input Voltage
|
AC85V～305V
|
|||||
|
Frequency Range
|
50Hz～60Hz
|
|||||
|
Total Harmonic Distortion
|
≤ 9 %
|
|||||
|
Power Factor
|
＞0.98
|
|||||
|
Power Efficiency
|
＞87 %
|
|||||
|
Working Voltage
|
DC30～36V
|
|||||
|
Color Rendering Index
|
Ra＞80
|
|||||
|
IP Grade
|
IP60
|
|||||
|
Material
|
Aluminum Alloy
|
|||||
|
Led Luminous Efficiency
|
130Lm /W
|
|||||
|
lamps Efficiency
|
＞91 %
|
|||||
|
Illuminance Uniformity
|
＞0.6
|
|||||
|
Color Temperature
|
2700-7000K
|
|||||
|
Light emitting angle
|
120°
|
|||||
|
Junction Temperature
|
≤80℃
|
|||||
|
Working Temperature
|
-40℃ ～ +55℃
|
|||||
|
Storage Temperature
|
-25℃ ～ +65℃
|
|||||
|
Working Lifespan
|
50000H
|
|||||
● Using high quality chips 5730 led chips which is up to 130Lm/W.
● Arm adjustable with any beam angle.
●Various options: 100-277V, 347V,480V etc.
● Higher lumen compared to similar models of others.
● Using aluminum fin heat sink which heat transfer faster than die cast.
Indoor and ourdoor lighting>>
low bay fixture,street pole,canopy,parking lot shoebox,wall pack,high bay fixtures etc..
