      Recessed LED Downlight 30W-180W

      Recessed LED Downlight 30W-180W

      Model:KW-SD100W
      Brand:

      Product introduction

      High Power LED Downlight
      Type:Recessed Mounted
      Power:30W-180W

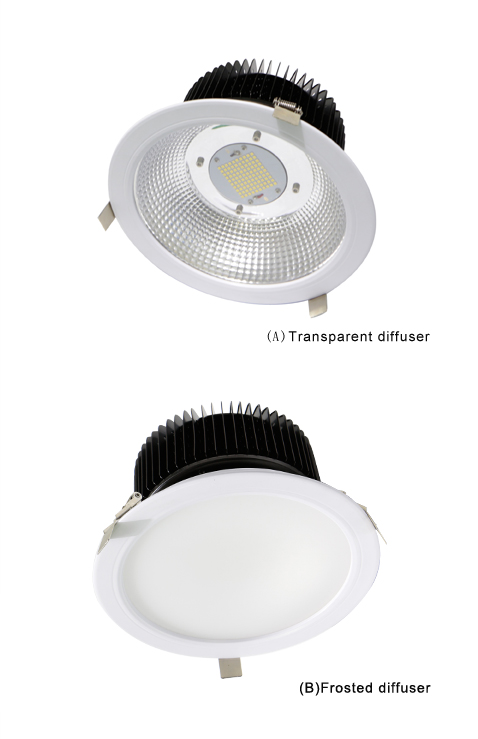

      Disffuser:Transparent/Frosted
      Dimmable and emergency are on request.
      Contact manufacturer
      Technical Parameter Features Replacement Package Applications



      60w downlight.jpg
      KW-SD Model led downlight is design for high ceiling lighting for new install commercial lighting or replacement for downlight applications with compact fluorescent/metal halide lamps .Compatible with standard ceiling cutouts 145mm ,150mm, 170mm,180mm,200-215 mm ,230-250mm , 270-280mm or 300-320mm. Wide lighting color (Kelvins) range 2700-7000K,  RGB lighting colors can be customized ,dual functions of lighting and decorating.


      recessed light.jpg

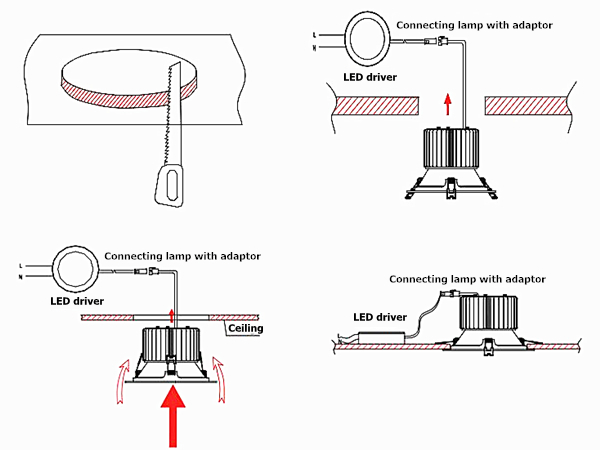

       Installation Instructions
      downlight installation.jpg
      Available dimension Dimension Cutout Weight
      5 inch 175x120mm                                       145mm 0.4kg
      6 inch 200x120mm 170mm 0.48kg
      8 inch 225x130mm 200mm 0.68kg
      9 inch 235x130mm 215mm 0.68kg
      10 inch 270x130mm 240-250mm 0.98kg
      12 inch 300x165mm 270-280mm 1.2kg
      14 inch 340x160mm 300mm 1.5kg

      Specifications
        Input Voltage
      AC100V~305V DC12V/ 24V
        Frequency Range
      50Hz~60Hz
        Total Harmonic Distortion
      ≤ 9 %
        Power Factor
      >0.95
        Power Efficiency
      >87 %
        Working Voltage
         DC30~36V
        Color Rendering Index
      Ra>80
        Material
      Aluminum Alloy
        Led Luminous Efficiency
      130Lm /W
        lamps Efficiency
      >91 %
        Illuminance Uniformity
      >0.6
        Color Temperature
      2700-7000K
        Light emitting angle
      35° / 60°/ 90°/ 120°
        Junction Temperature
      ≤80℃
        Working Temperature
      -40℃ ~ +55℃
        Storage Temperature
      -25℃ ~ +65℃
        Working Lifespan
      50000H
      Family Model
      Model No. Watt Lamp Lumen
      KW-SD30W 30W 2700-3300lm
      KW-SD40W 40W 3600-4400lm
      KW-SD50W 50W 4500-5000lm
      KW-SD60W 60W 5400-6000lm
      KW-SD70W 70W 6650-7000lm
      KW-SD80W 80W 7200-8000lm
      KW-SD100W 100W 9000-10000lm
      KW-SD120W 120W 10800-12000lm
      KW-SD150W 150W 14250-15750lm
      KW-SD180W 180W 17100-18000lm
      KW-SD200W 200W 19000-20000lm

       Contact us now!

       ● High brightness led 130lm/W

      ●Power-saving, best aluminum alloy fin heat sink for high effective cooling operation

      ●Both dimmable and non-dimmable are available (0-10V /1-10V/triac/dali dimmable)

      ●RGBW and CCT Changeable are on available.

      ● Emergency led downlight are on request.

      ●Go green,energy saving,low carbon environmental protection,no mercury pollution

      ●High power,  light weight, easy installation

      ●Direct retrofit to most LED Down Light 5 inch/ 6 inch/8 inch /9 inch/10 inch / 12 inch diameter are available.

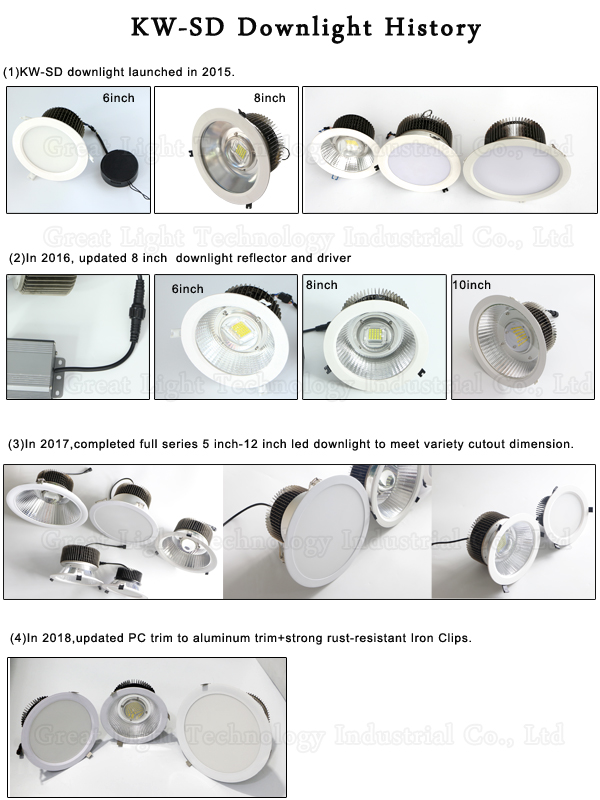

       Downlight history.jpg

       Replacement compact fluorescent/metal halide lamps .

      Product Description  Packaging unit (Pieces/Unit) Dimensions (length x width x height) Volume  Gross weight
      6 inch Downlights 6 53x43.5x34cm 0.078cbm 18.5kg
      8 inch Downlights 6 55x45x36cm

      0.089cbm

      19kg
      10 inch Downlights 6 58x47*36CM 0.098cbm 20kg



      Corridor, office, shopping mall, display window and inner lighting

      Reception room, lobby, hotel room lighting

      Museum, exhibition hall, art gallery exhibit lighting

      Bus/railway/subway stations and other indoor lighting.
