kmyled.geloLED Downlight
Located：LED Downlight
Surface Mounted Downlight 40W-150W
Model:KW-SH150W Brand:
Product introduction
High Power LED DownlightType:surface mounted
Power:40W-150W
Input Voltage:AC100V-305V/347V/480V
Housing Finishing Color:Black/White/Grey
Dimmable and emergency are on request.Contact manufacturer
Technical Parameter Features Replacement Package Applications
 |

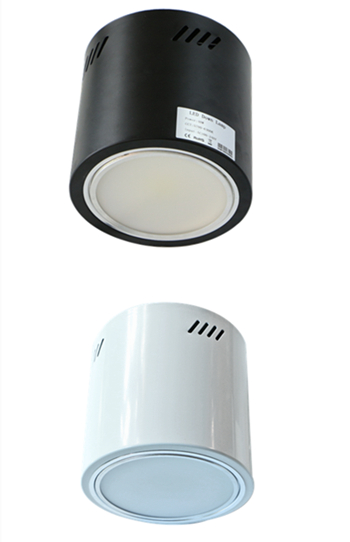

KW-SH LED Surface Mounted Downlight(cylinder light) is Architecturally designed fitting with simple installation. Available in Black finish, can also be white/grey finishing . This downlight is environmentally friend and does not contain harmful substances. It is equipped with CREE LED chips. Comes in Warm White, Cool White or Day Light. High power 40W-150W ,perfect for 3-12m height ceiling.
 |
|
Specifications
|
||||||
|
Input Voltage
|
AC100V～305V
|
|||||
|
Frequency Range
|
50Hz～60Hz
|
|||||
|
Total Harmonic Distortion
|
≤ 9 %
|
|||||
|
Power Factor
|
＞0.95
|
|||||
|
Power Efficiency
|
＞87 %
|
|||||
|
Working Voltage
|
DC30～36V
|
|||||
|
Color Rendering Index
|
Ra＞80
|
|||||
|
Material
|
Aluminum Alloy
|
|||||
|
Led Luminous Efficiency
|
130Lm /W
|
|||||
|
lamps Efficiency
|
＞91 %
|
|||||
|
Illuminance Uniformity
|
＞0.6
|
|||||
|
Color Tenperature
|
2700-7000K
|
|||||
|

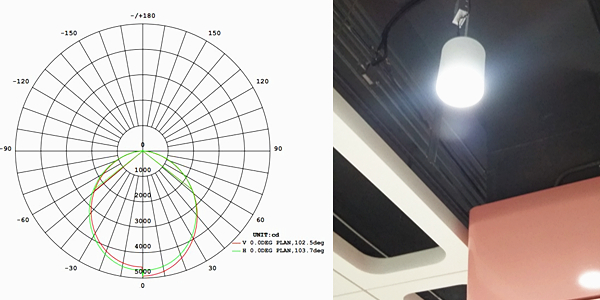

Light emitting angle
|
120°
|
|||||
|
Junction Temperature
|
≤80℃
|
|||||
|
Working Temperature
|
-40℃ ～ +55℃
|
|||||
|
Storage Temperature
|
-25℃ ～ +65℃
|
|||||
|
Working Lifespan
|
50000H
|
|||||
| Family Model | ||||||
| Model No. | Watt | Luminous Flux | Dimension | Weight | ||
| KW-SH40W | 40W | 3600-4000lm | 180x190mm | 1.3kg | ||
| KW-SH50W | 50W | 4500-5000lm | 180x190mm | 1.3kg | ||
| KW-SH60W | 60W | 5400-6000lm | 180x190mm | 1.3kg | ||
| KW-SH80W | 80W | 7200-8000lm | 220x219mm | 2kg | ||
| KW-SH100W | 100W | 9000-10000lm | 220x219mm | 2kg | ||
| KW-SH120W | 120W | 10800-12000lm | 220x219mm | 2kg | ||
| KW-SH150W | 150W | 12500-15000lm | 220X219mm | 2kg | ||
1.All-in-one mono body in aluminum fin heat sink for excellent heat spreading.
2.Equipped with high quality CREE LED chips 130lm/w.
3.Finish Colour: Black/White/Grey
4.Go green ,energy saving , no mercury pollution.
5.Instant start up: Silent operation and flicker-free,effectively protecting the eyes.
6.50,000 hours lifespan.
Replacement for MHL/HPS/CFL downlights
General indoor lighting in office, study, living room, kitchen, dining room, display case, etc
Commercial lighting in shopping malls, restaurants, schools,metro stations and other indoor lighting.
